Integrating Acunetix 360 with Trello

Trello is a web-based, list-making application for collaboration. It works by organizing projects into boards, lists and cards. Teams can then exchange information by adding cards, comments, attachments and due dates, from the beginning of a project to its conclusion.

This topic explains how to configure Acunetix 360 to send a detected vulnerability to Trello (including using the wizard).

For further information, see What Systems Does Acunetix 360 Integrate With?.

Trello Fields

This table lists and explains the Trello fields in the New Trello Integration window.

Button/Section/Field

Description

Name

This is the name of the configuration that will be shown elsewhere.

Mandatory

This section contains fields that must be completed.

API Key

This is the API Key for authentication.

Token

This is the API Token for the user.

Board Id

This is the board identifier.

List Id

This is the list identifier.

Title Format

This is the string format that is used to create the vulnerability title.

Optional

This section contains optional fields.

Members

This is a comma-separated list of member IDs to add to the card.

Labels

These are the issue labels.

Due Days

This is the number of days from the date the issue was created to the date it's due.

Custom Fields

This section contains user-defined custom fields.

New Custom Field

The Custom Fields which are defined for the board.

Name

Enter a name for the new custom field.

Value

Enter a value for the new custom field.

Dropdown

Click the dropdown to change the input type. The options are:

  • Text
  • Password
  • Textarea
  • File upload
  • Complex

Create Sample Issue

Once all relevant fields have been configured, click to create a sample issue.

How to Integrate Acunetix 360 with Trello
  1. Log in to Acunetix 360.
  2. From the main menu, click Integrations then New Integration.

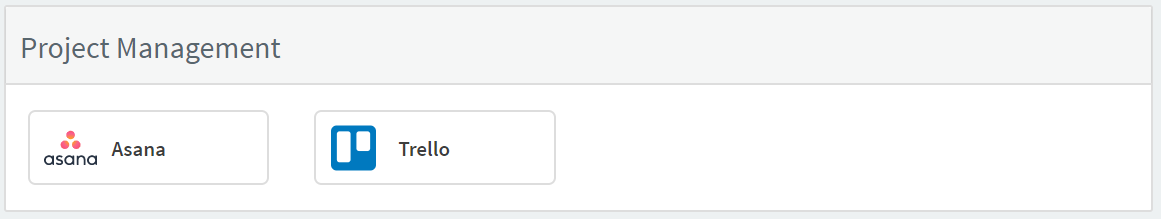

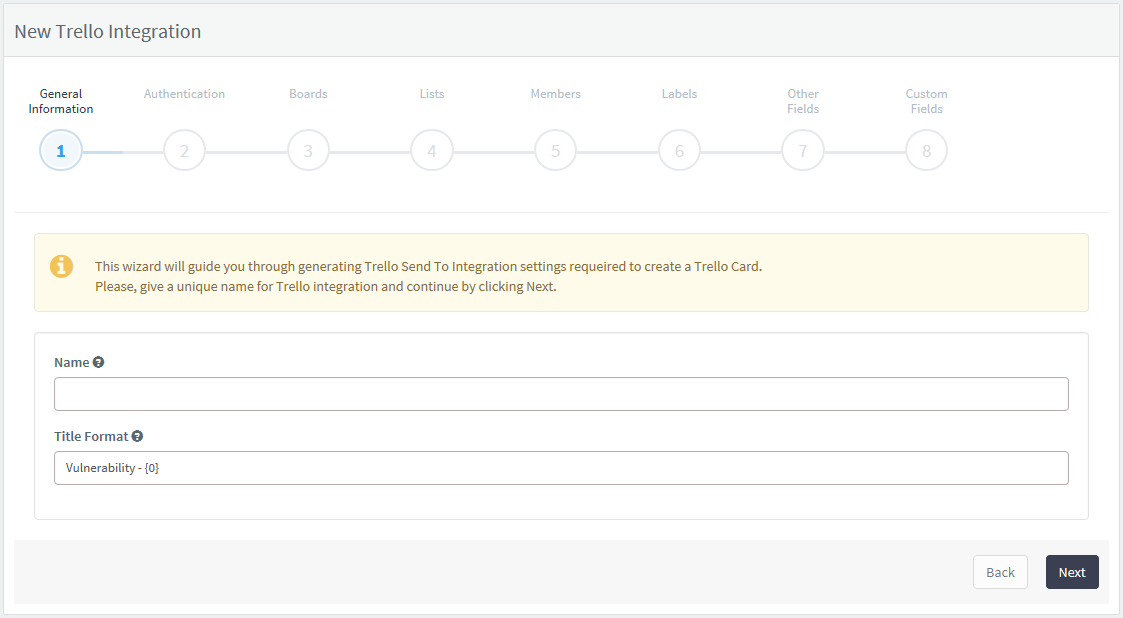

  1. From the Project Management section, click Trello. The New Trello Integration wizard is displayed, open at the General Information step.

  1. In the Name field, enter a name for the integration.
  2. In the Title Format field, enter the required format. Click Next. The Authentication step is displayed.

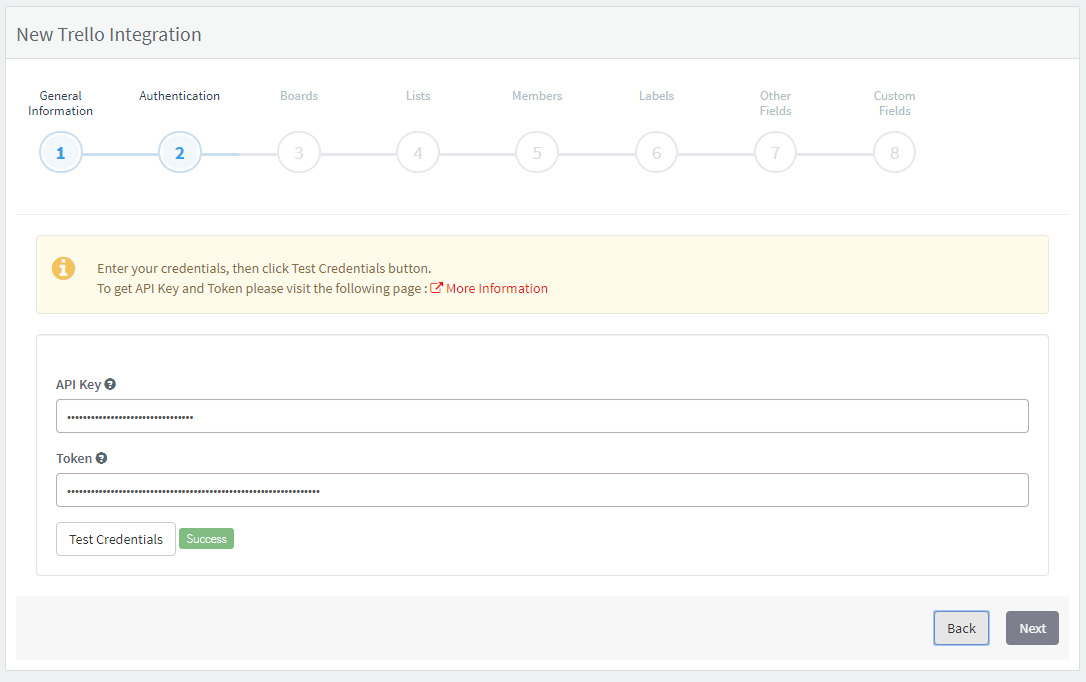

  1. Complete the API Key and Token fields, and click Test Credentials. If the token you entered is correct, a Success status message is displayed. Click Next. The Boards step is displayed.

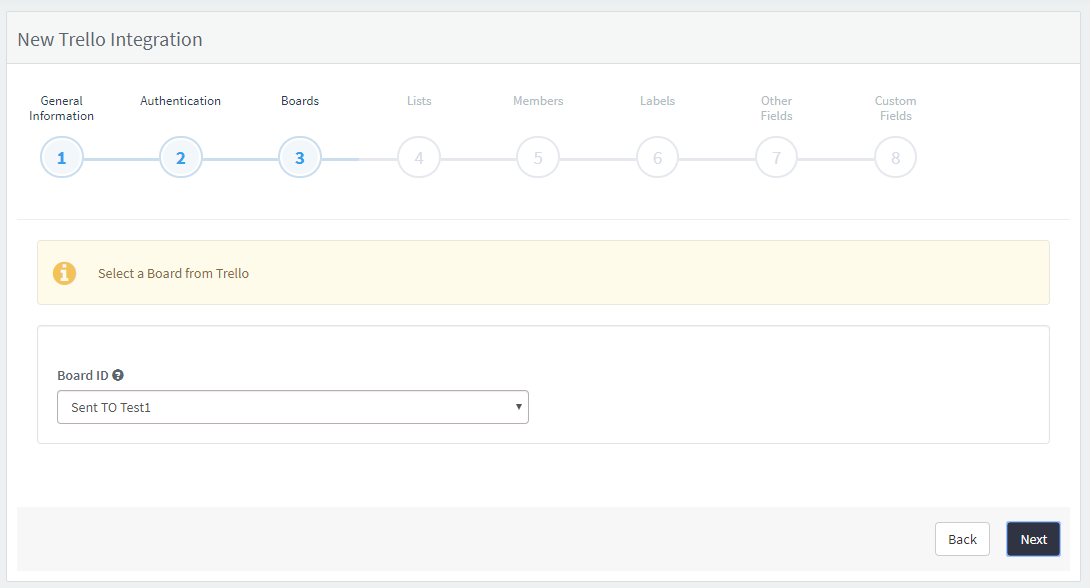

  1. From the dropdown, select a Board Id. Click Next. The Lists step is displayed.

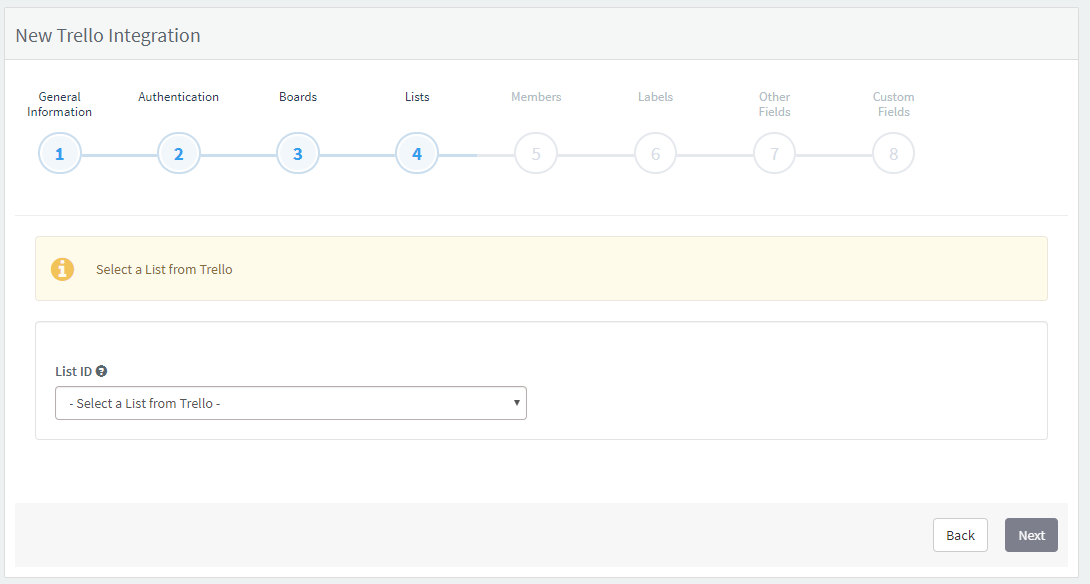

  1. From the dropdown, select a List Id. Click Next. The Members step is displayed.

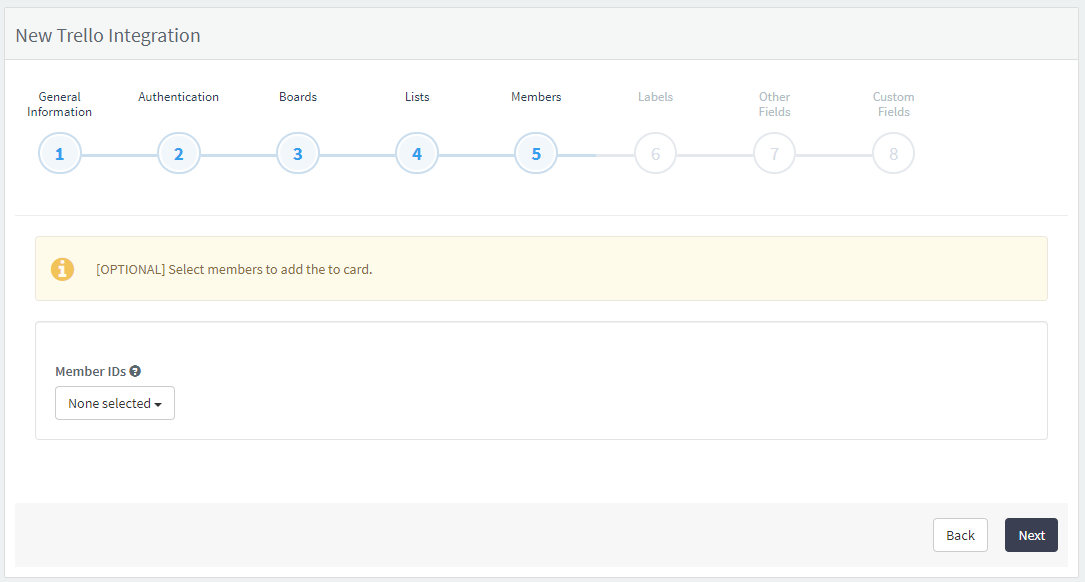

  1. From the Member Ids dropdown, select members to add to the card (if required). Click Next. The Labels step is displayed.

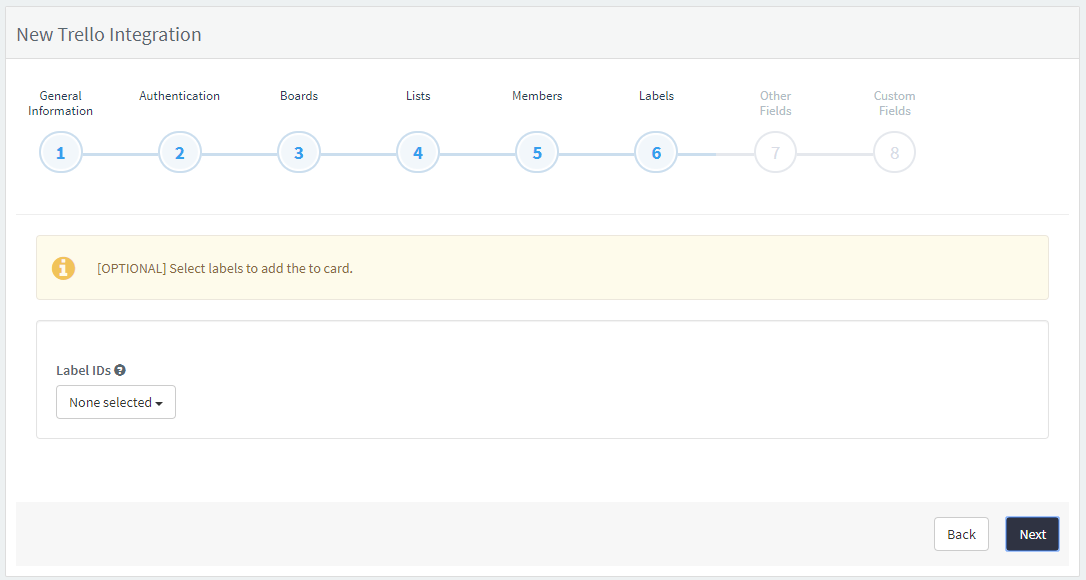

  1. From the dropdown, select Labels Ids to add to the card (if required). Click Next. The Other Fields step is displayed.

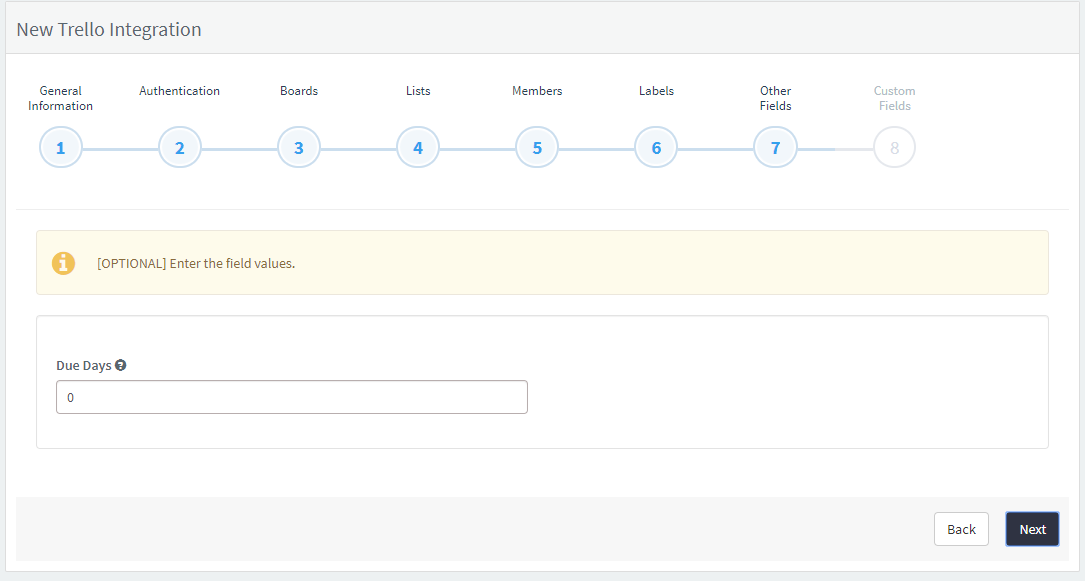

  1. From the Due Days, select an option (if required). Click Next. The Custom Fields step is displayed.

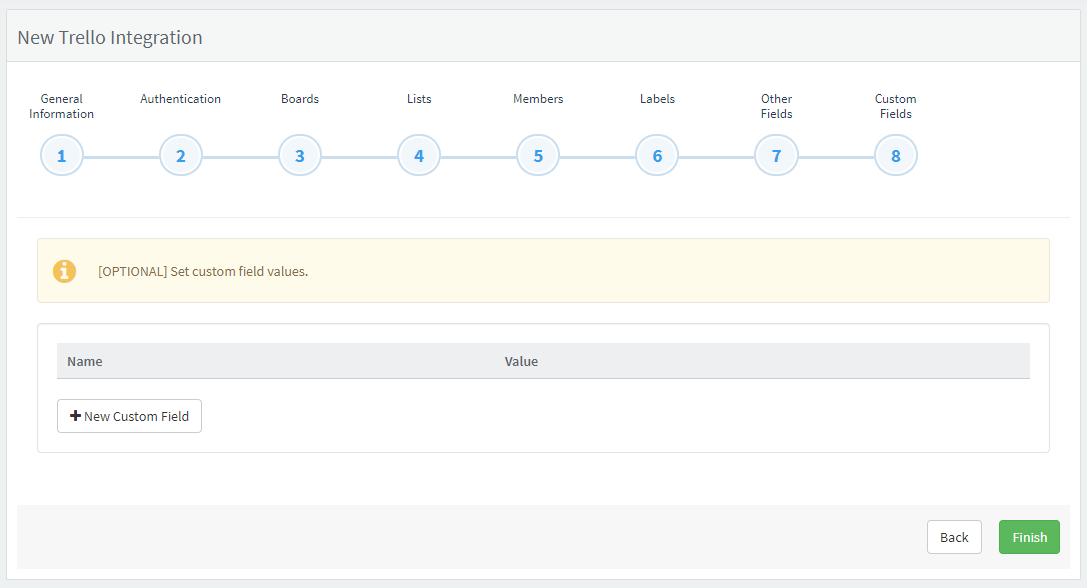

  1. Click New Custom Field to set field values (if required). Click Finish.

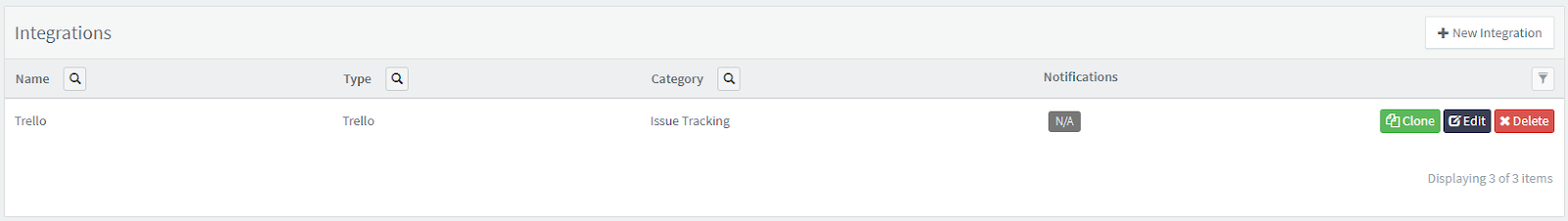

  2. The newly-added integration is displayed on the Integrations page.

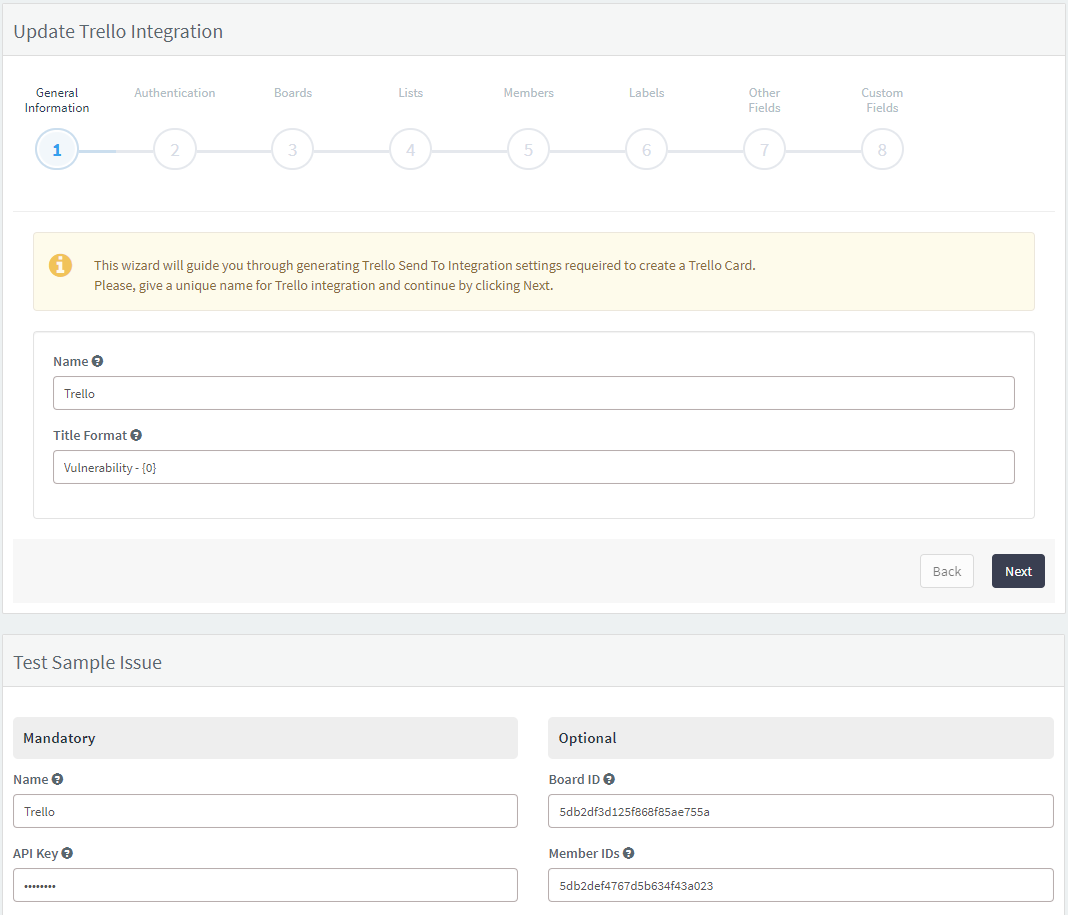

  1. If you want to rearrange the information, click Edit and amend the details.

  1. Clicking Create Sample Issue to confirm that Acunetix 360 can connect to the configured system. A confirmation message is displayed to confirm that the sample issue has been successfully created.

  1. In the confirmation message, click the Issue number link to open the issue in your default browser.
  2. If the Trello integration is not configured correctly, Acunetix 360 will correctly route the following descriptive error message to you. This is a sample error message:
  • If the API Key was entered incorrectly

  1. Click Save to save the integration.
How to Export Reported Vulnerabilities to Projects in Trello

There are several ways to send issues to Trello with Acunetix 360:

  • You must have Manage Issue permission.

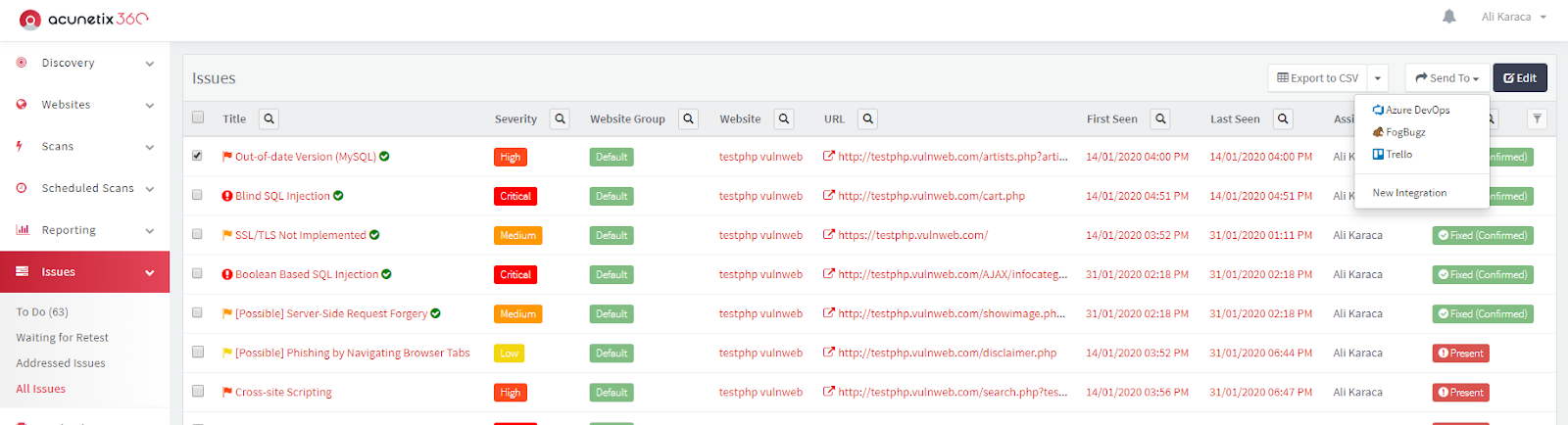

  • From the main menu, select Issues, then All Issues. The Issues window is displayed.
  • Select one or more issues you want to send.
  • Click Send To, then Trello.

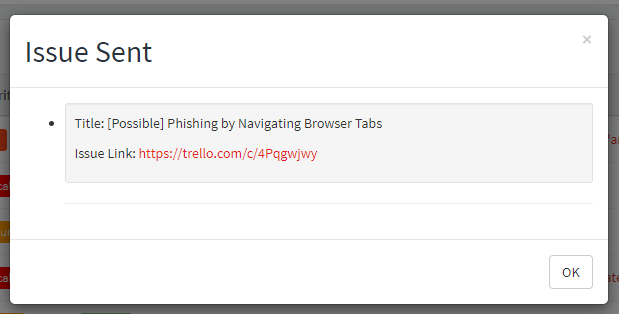

  • A popup is displayed, with a link to the issue you have sent to Trello. If there is an error, this information will be displayed instead.

  • You can send an issue from the Recent Scans window:

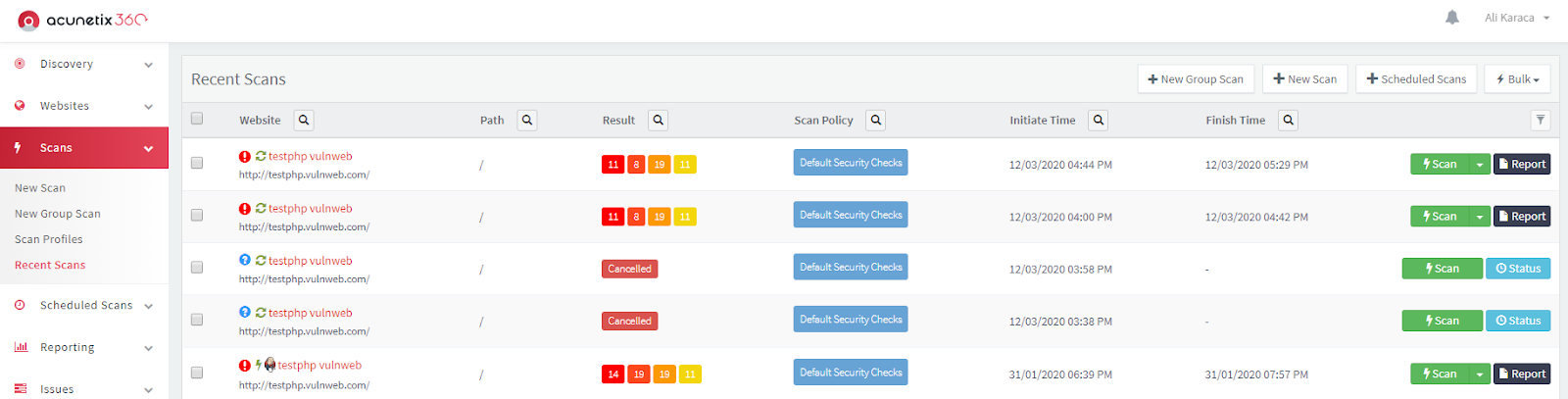

  • From the main menu, click Scans then Recent Scans.

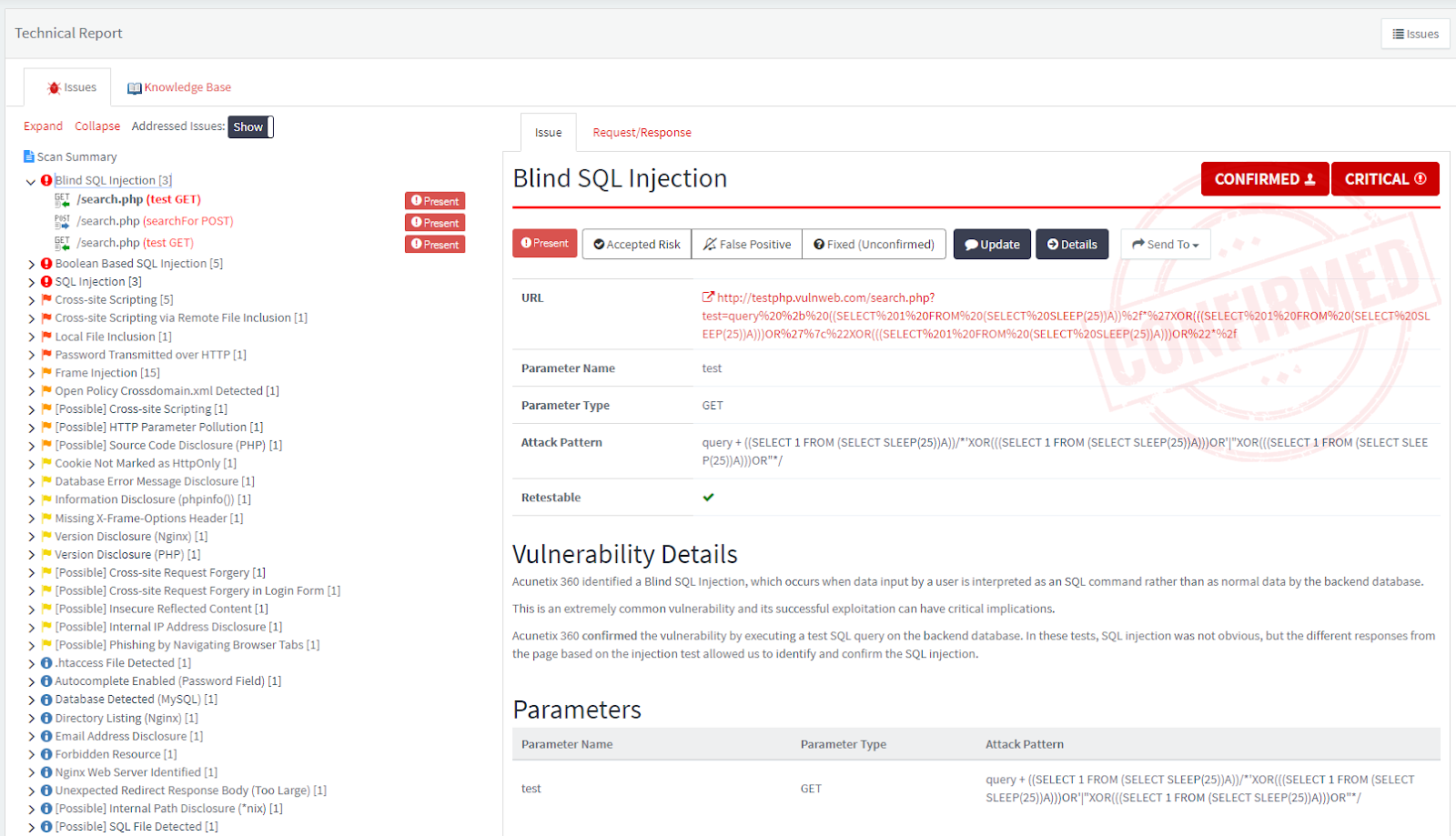

  • Next to the relevant scan, click Report. The report is displayed.
  • Scroll down to the Technical Report section.

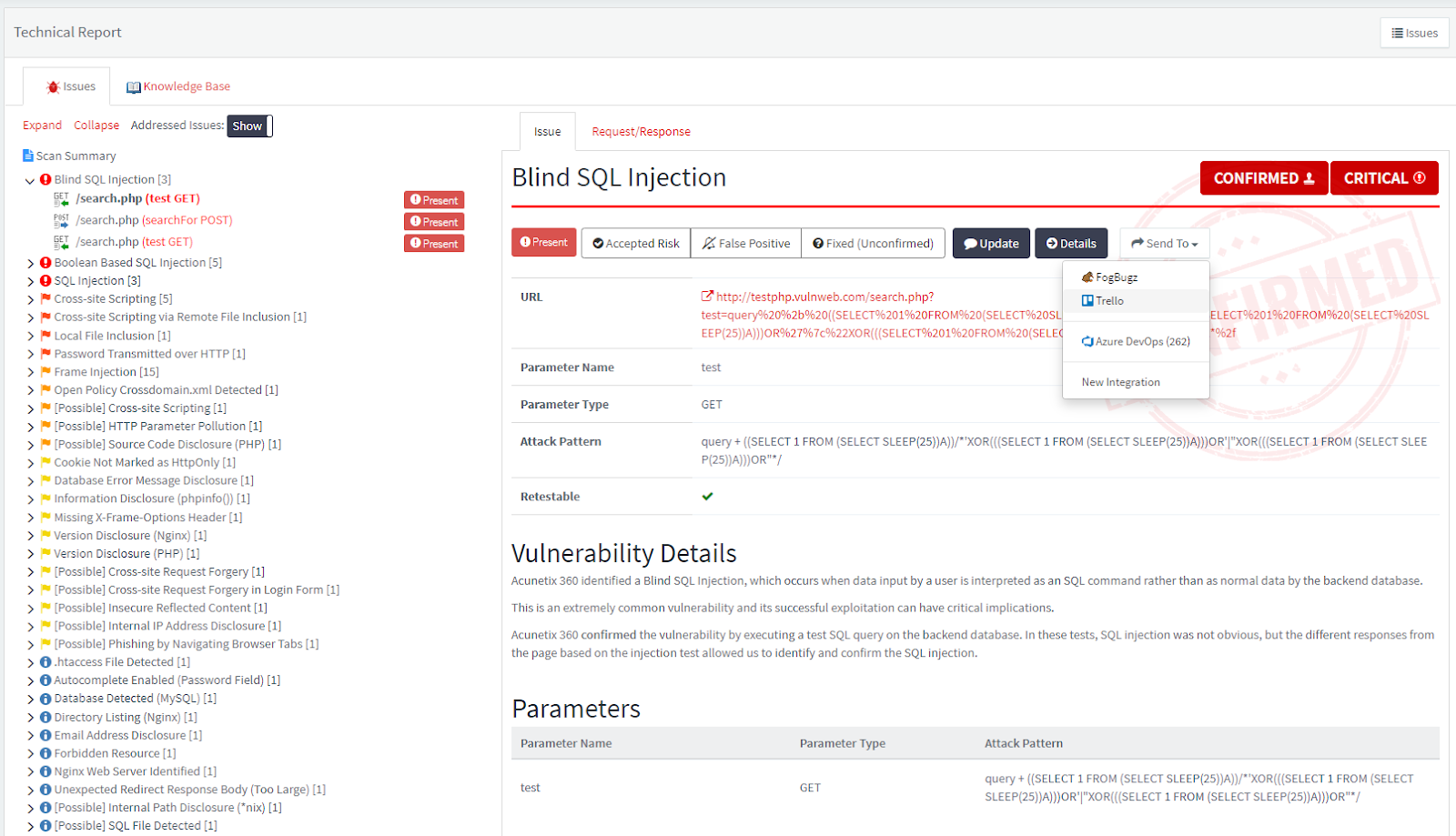

  • From the list of detected vulnerabilities, click to select an issue and display its details.

  • Click Send To, then Trello.

  • If you have previously submitted this vulnerability to Trello, it will already be accessible. You cannot submit the same issue twice.

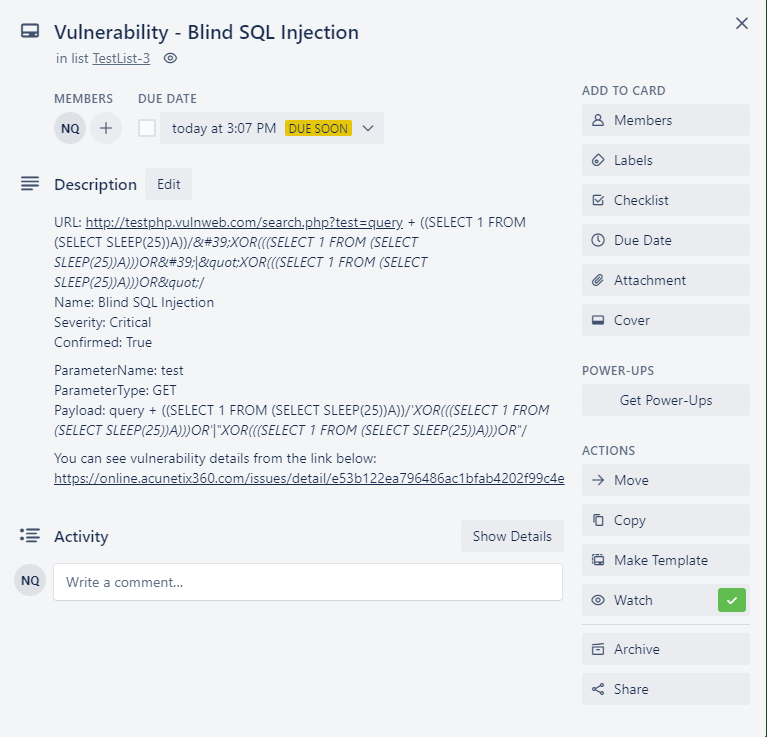

  • If you view opened problem logs in Trello, they look like this.
