Installing a Scan Agent on Linux (RedHat Distribution)

If you want to scan a website in a demilitarized zone (DMZ), internal networks that are not publicly accessible, you can install Acunetix scan agents in your network. You can install an Acunetix 360 scan agent on a Linux operating system. If you choose this installation, you must install some dependencies on the system, such as .NET, Mono. This is an alternative method for installing Acunetix 360 Scan Agents.

In addition to the scanning agent, you can install an authentication verifier agent on your network that will verify the form authentication in your website. For further information, see Installing Authentication Verifier Agents in Acunetix 360.

Mono is a software platform designed to allow developers to easily create cross-platform applications that become part of the .NET Foundation.

This topic explains how to install an Acunetix 360 scan agent on Linux (RedHat distribution) operating systems. For the Debian Distribution, see Installing a Scan Agent on Linux (Debian Distribution).

Information

The instructions below were tested on CentOS 7, CentOS 8, Fedora 32, and Fedora 33.


There are three stages to this process:

  1. Download the Acunetix 360 agent file
  2. Install the Acunetix 360 agent
  3. Configure the Acunetix 360 agent as a Linux service

Prerequisites

Hardware Requirements

  • 1.4 GHz Processor (2.0 GHz or faster recommended)
  • 2 GB RAM (4 GB or higher recommended)
  • 10 GB Free Disk space for each internal agent

Network Requirements

  • Agent should be configured so that it can reach your internal website through HTTP/HTTPS.
  • Agent needs to be able to access the Acunetix 360 Application Server’s HTTP(S) (443) port.

Required Access

  • User(s) must have administrator privileges to run the required commands.

Downloading the Agent

You need to download the installation files of the agent to a machine in your internal network. To download the agent from Acunetix 360, you must be an account administrator.

How to Download an Acunetix 360 Scan Agent

  1. Log in to Acunetix 360.

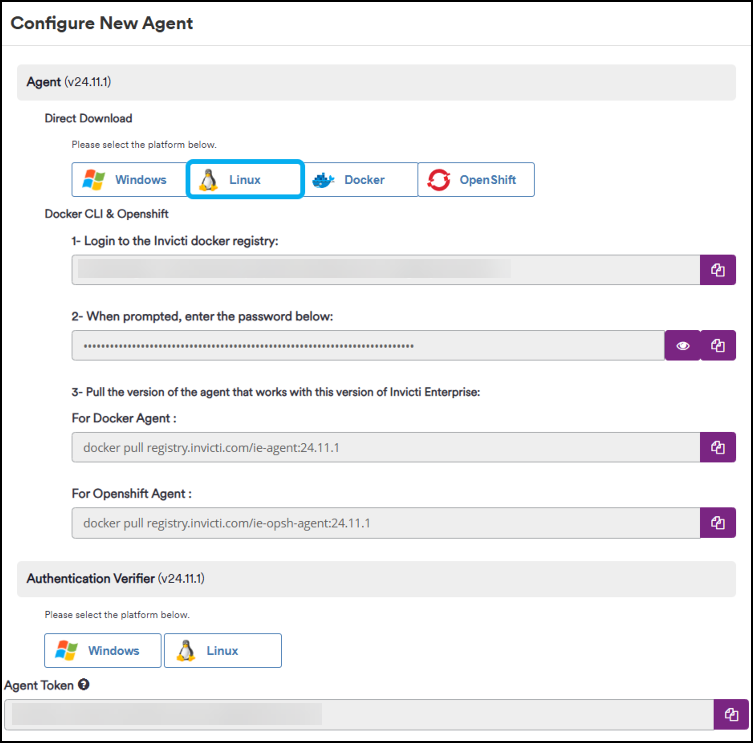

  2. From the main menu, go to Agents > Manage Agents > Configure New Agent.
  3. From the Agent section, select Linux to download the required files to install the scan agent.

Installing the Scanning Agent

Once you download the required file, you can install an Acunetix 360 scan agent in your environment.

  1. Open a terminal window.
  2. First, update operating system application repositories:

sudo yum update -y

  1. Install the following package as NTLM authentication is required by the agent:

sudo yum install -y epel-release

  1. Next, Install the dependent packages:

sudo yum install p7zip p7zip-plugins

sudo yum install -y nano tar gssntlmssp mono-complete libgdiplus

Information

If you've already installed the SDK or runtime, use the dotnet --list-sdks and dotnet --list-runtimes commands to see which versions are installed.

  1. Install .NET Core 3.1 SDK for Linux OS:

CentOS 8, Fedora 32, Fedora 33:

sudo yum install -y dotnet-sdk-3.1

CentOS 7:

sudo rpm -Uvh https://packages.microsoft.com/config/centos/7/packages-microsoft-prod.rpm

sudo yum install -y dotnet-sdk-3.1

  1. Create folder for Acunetix Scanner dependency:

sudo mkdir -p /home/[YOUR_USER]/.local/share/Netsparker_Ltd

sudo chown -R [YOUR_USER] /home/[YOUR_USER]/.local/share/Netsparker_Ltd

Information

[YOUR_USER] in the 5th step must be the same as [YOUR_USER] in the unit file described later in this article.

  1. Install the Headless Chrome browser dependencies:

sudo yum install -y pango.x86_64 libXcomposite.x86_64 libXcursor.x86_64 libXdamage.x86_64 libXext.x86_64 libXi.x86_64 libXtst.x86_64 cups-libs.x86_64 libXScrnSaver.x86_64 libXrandr.x86_64 GConf2.x86_64 alsa-lib.x86_64 atk.x86_64 gtk3.x86_64 xorg-x11-fonts-100dpi xorg-x11-fonts-75dpi xorg-x11-utils xorg-x11-fonts-cyrillic libX11-xcb.so.1 libnss3.so xorg-x11-fonts-Type1 xorg-x11-fonts-misc

  1. Next, extract the TAR file:
  • To extract the scan agent, run the following commands:

tar xf Acunetix_360_Scanner_Agent.tar chmod +x .local-chromium/Linux-*/chrome-linux/chrome

  • To extract the authentication verifier agent, run the following commands:

tar xf Acunetix_360_Verifier_Agent.tar

chmod +x .local-chromium/Linux-*/chrome-linux/chrome

Open appsettings.json file via any text editor you prefer, for example:

sudo nano appsettings.json



These settings will be used by the scan agent:

  • AgentName: This can be anything you want. This text will be displayed when you are starting a new scan. (If you are going to install more than one instance of the agent, you must set a unique agentName value for each instance, something you will use later.)
  • AgentType: This can be Standard or Cloud. If you want to use Cloud Provider for scanning, AgentType must be Cloud.
  • ApiToken: In Acunetix 360, the Agent Token is displayed in the Configure New Agent window. Copy the value into the apiToken. (For further information, see How to Get an Agent Token for the Scan Agent.)
  • ApiRootUrl: This is the URL of Acunetix 360 or the Acunetix 360 On-Premises.

Setting Agent as a Linux Service

An internal scanning agent should be configured as a Linux service so that it can poll the Acunetix 360 servers regularly and can take the scan initiation command from the server.

Additionally, you can update the scan agent or enable it to auto-update itself. For further information about the agent update, see Auto-Update Support for Scanner Agents.

You can complete this process in three steps:

Add a Unit File for an Acunetix 360 Agent

  1. Open a terminal
  2. cd /etc/systemd/system
  3. sudo touch [YOUR_AGENT_NAME].service
  4. sudo nano [YOUR_AGENT_NAME].service

Information

The AgentName in the appsetting.json file and the unit file name for the agent must have the same name. This is required to start the scan agent as a Linux service and to update the scan agent when a new version is released.

  1. Add the following script into [YOUR_AGENT_NAME].service

[Unit]

Description=acunetix.service description

[Service]

Type=notify

KillMode=process

Restart=always

RestartSec=30

SyslogIdentifier=[YOUR_USER]

KillSignal=SIGINT

User=[YOUR_USER]

WorkingDirectory= [YOUR_AGENT_DIRECTORY_PATH]

ExecStart=/usr/bin/dotnet [YOUR_AGENT_DIRECTORY_PATH]/Acunetix.Cloud.Agent.dll

ExecStop=/usr/bin/pkill -f "[YOUR_AGENT_DIRECTORY_PATH]/Nhs/AcunetixHelperService.exe"

[Install]

WantedBy=multi-user.target



Save and close the document.

Configure Sudoers for an Acunetix Agent

  1. sudo cd /etc/sudoers.d
  2. sudo touch [YOUR_AGENT_NAME]-systemctl
  3. sudo visudo -f [YOUR_AGENT_NAME]-systemctl
  4. Add the following script into [YOUR_AGENT_NAME]-systemctl
  1. [YOUR_USER] ALL=(ALL:ALL) NOPASSWD: /usr/bin/systemctl start [YOUR_AGENT_NAME].service
  2. [YOUR_USER] ALL=(ALL:ALL) NOPASSWD: /usr/bin/systemctl stop [YOUR_AGENT_NAME].service

Save and close the document.

Start Acunetix 360 Agent as a Linux Service

  1. sudo systemctl daemon-reload
  2. sudo systemctl start [YOUR_AGENT_NAME].service

In Acunetix 360, you can check the status of the connection between it and the scan agent.

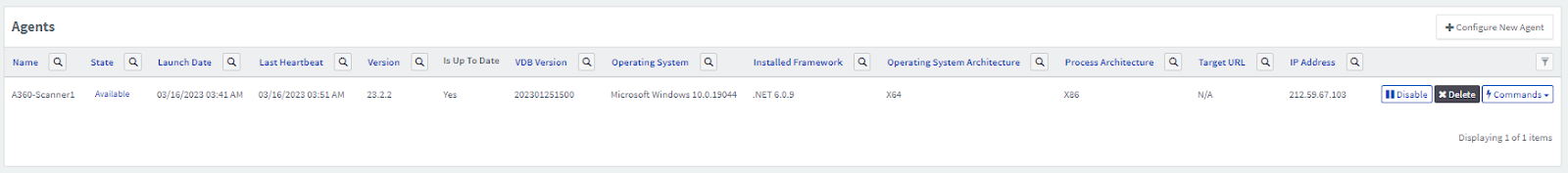

From the Agents menu, click Manage Agents. The Agents window is displayed.

Information

Any changes in the appsetting.json file, such as setting proxy and changing API Token, require restarting the service so that the changes can take effect.

Information

You can set a proxy for the scanning agent in Acunetix 360. For further information about the proxy, see Setting Proxy in Scanner Agents. Using Proxy Auto-Configuration? For further information, see Using Proxy Auto-Configuration file.

Defining and Scanning an Internal Website in Acunetix 360

Now, you have installed a scanning agent into your infrastructure; you should configure Acunetix 360 to let it know which websites should be scanned with an internal agent rather than with the built-in agents.

How to Define an Internal Website in Acunetix 360
  1. Log in to Acunetix 360.
  2. From the main menu, select Websites > New Website.
  3. Enter your internal website details (see Adding a Website in Acunetix 360).
  4. From the Agent mode field, select Internal.
  1. Select Save.
How to Scan an Internal Website with Agent
  1. Log in to Acunetix 360.
  2. From the main menu, select Scans > New Scan.
  3. From the Target URL field, select your Internal Website (if the field is not already populated).
  4. The Preferred Agent field is already selected by default. Your newly installed scanning Agent is displayed as an option. If you installed more than one instance, select the one which can access your Internal Website. If any of them can access your Internal Website, select the default option Any of the available agents. By selecting this, one of the idle agents will scan your website.
  5. Select Launch. (For simplicity, optimization and other settings are ignored in this procedure.)

Your scan has been started in the Queued state. Shortly, you will see that its status changes to Scanning. Once it is completed, you will be able to explore the vulnerabilities found on your website.

Installing Multiple Agents on the Same Operating System

You can install more than one agent in Linux.

How to Install Multiple Agents on the Same Operating System
  1. Open a terminal window.
  2. Create a new folder for the new agent.
  3. Copy the TAR file into the new folder, and extract the TAR file
  4. Follow the instructions in Installing the Agent and Setting Agent as a Linux Service.

Make sure that you enter a different name for the new agent.

For further information about managing scan agents, see Managing Groups.

How to Get an Agent Token for the Scan Agent
  1. Log in to Acunetix 360.
  2. From the main menu, go to Agents > Manage Agents > Configure New Agent.

  1. In the Agent Token field, click Copy to clipboard ().
