Integrating Acunetix 360 with Splunk
Splunk is a Security Information and Event Management (SIEM) software that is used to read and store machine-generated data. Splunk aims to collect data like operating system logs, antivirus events, etc in a single central location to generate graphs, reports, alerts. Integrating with Splunk helps you to increase information security so that you can collect identified issues or vulnerabilities
There are four stages:
- How to Install Splunk
- How to Configure Add-on Settings
- How to Configure Input
- How to Search Vulnerabilities
Information | |
Acunetix 360 Add-on is only available for Splunk Enterprise. It will be available for Splunk Cloud soon. |
How to Install Splunk
- First, locate the Acunetix 360 Add-on in Splunkbase: https://splunkbase.splunk.com/app/4862/
- Follow these instructions to install the add-on: https://docs.splunk.com/Documentation/AddOns/released/Overview/Installingadd-ons.
- Once the Acunetix 360 add-on is installed, it should be configured to collect issues from the Acunetix 360 API (see How to Configure Add-on Settings). The add-on can collect data from both On-demand and On-premise editions of Acunetix 360.
How to Configure Add-on Settings
Add-on settings must be configured in order to authenticate the API.

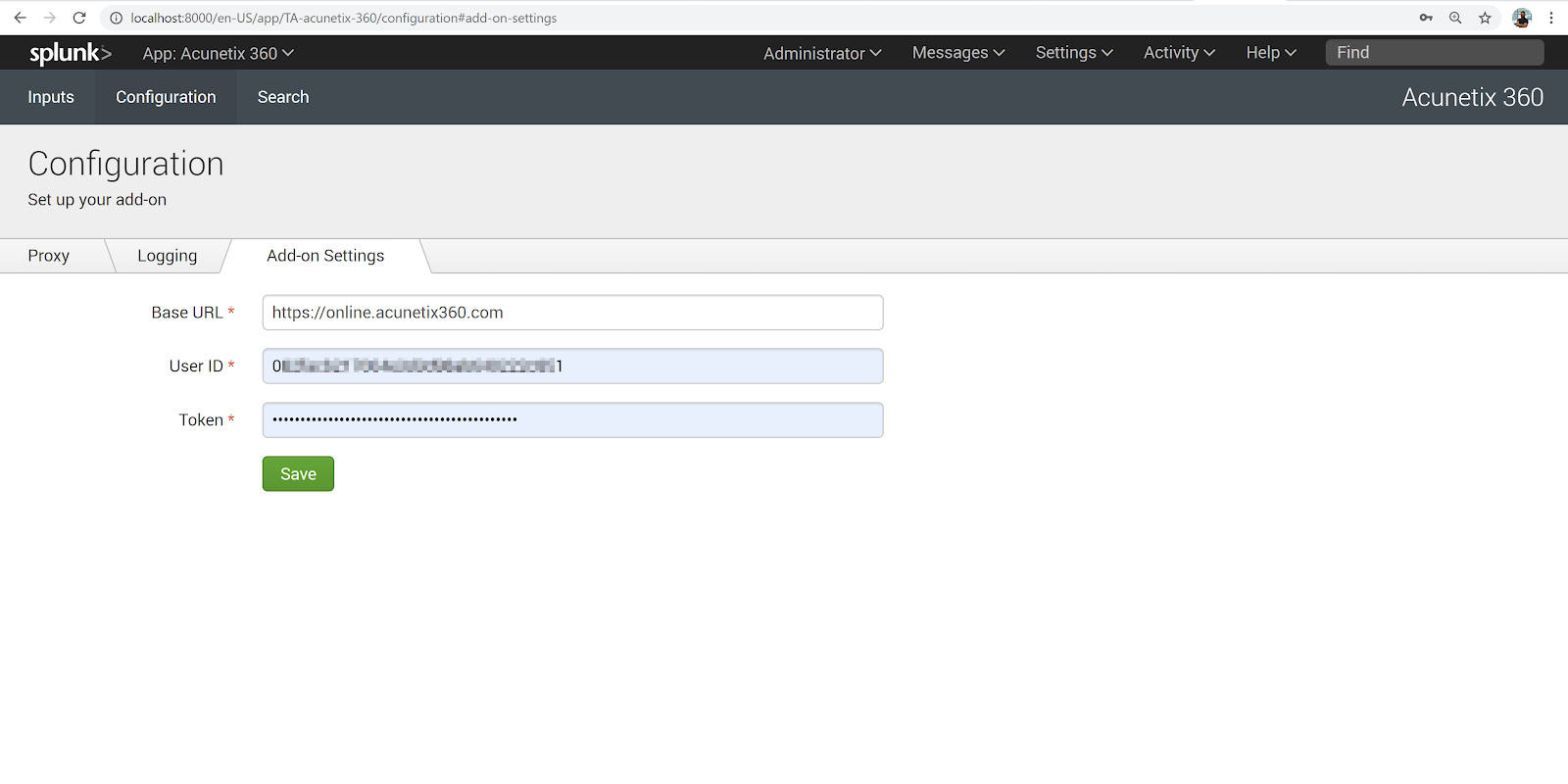

- In Splunk, navigate to Acunetix 360 Add-On, then Configuration.
- Click the Add-on Settings tab.
- Complete the Base URL, User ID and Token fields. (The Base URL is the Acunetix 360 URL.)
Information | |
User ID and Token values can be found at https://online.acunetix360.com/account/apisettings/. |
- Click Save.
How To Configure Input

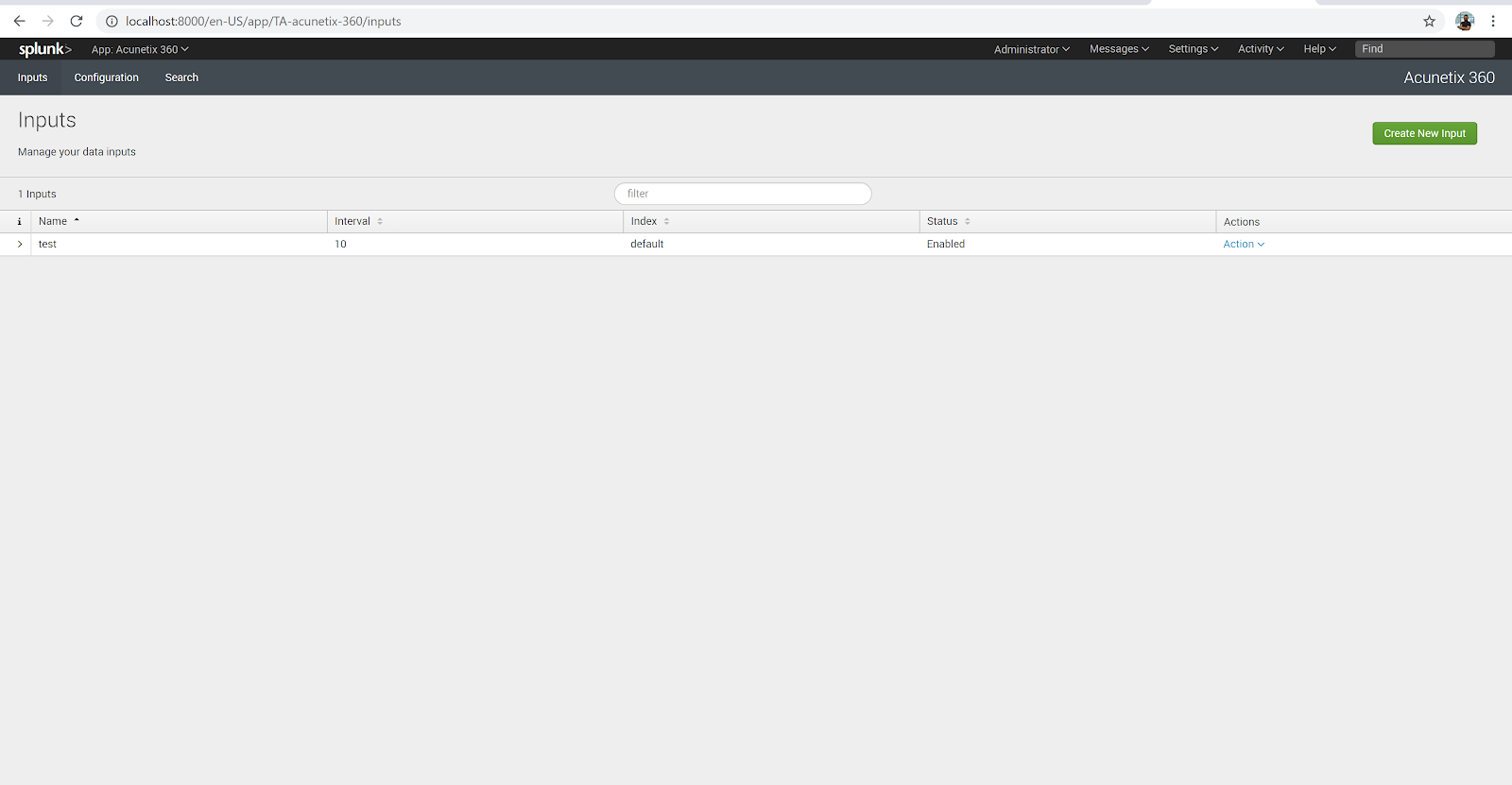

- In Splunk, navigate to the Acunetix 360 Add-On, then Inputs.

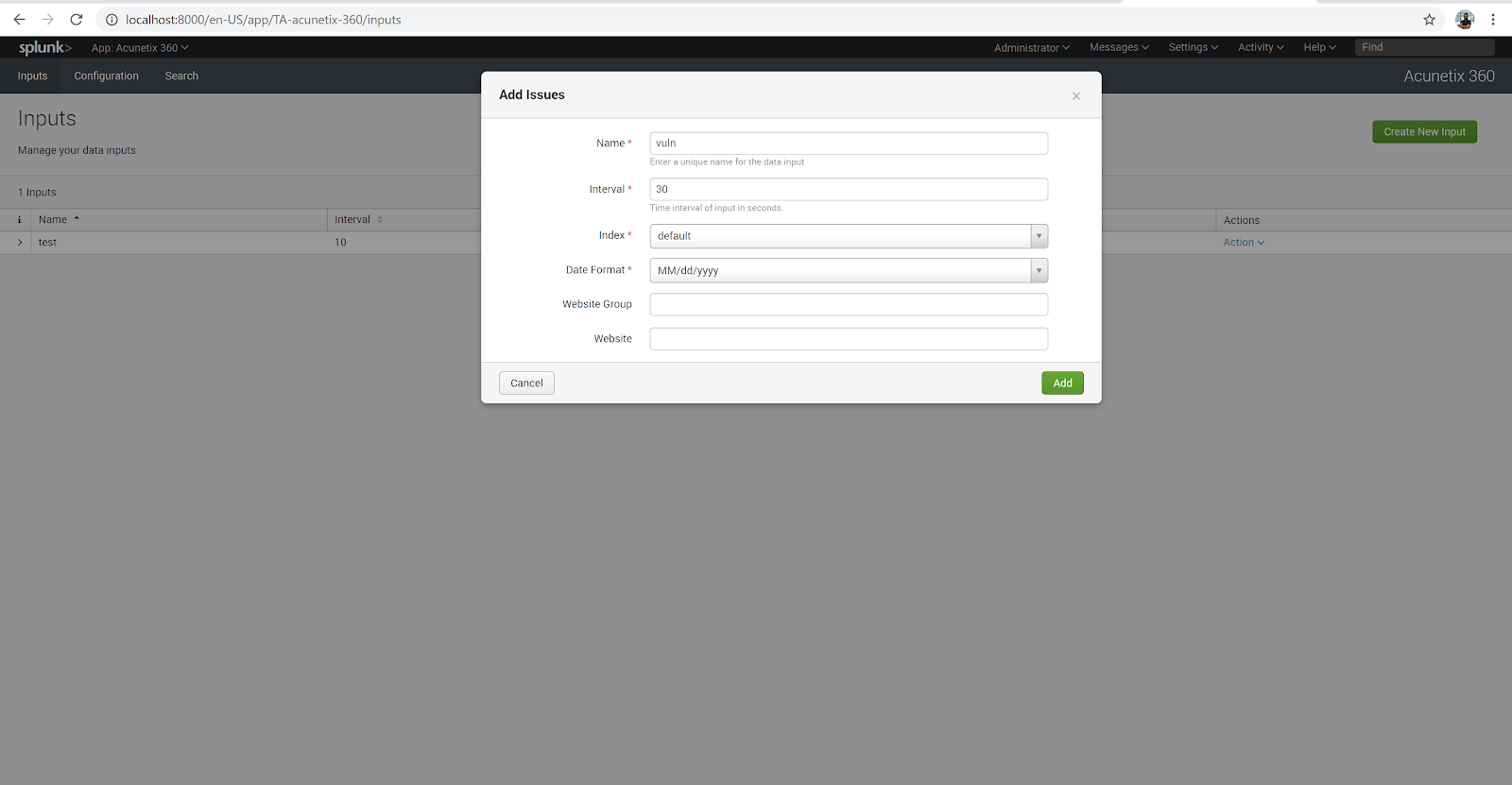

- To edit an existing Input, in the Actions column, click the Action dropdown, then Edit link. (Alternatively, to create a new Input, click Create New Input.) The Update Vulnerability dialog is displayed.
- The Date Format should be equal to the value defined in the Change Account Settings window in Acunetix 360.

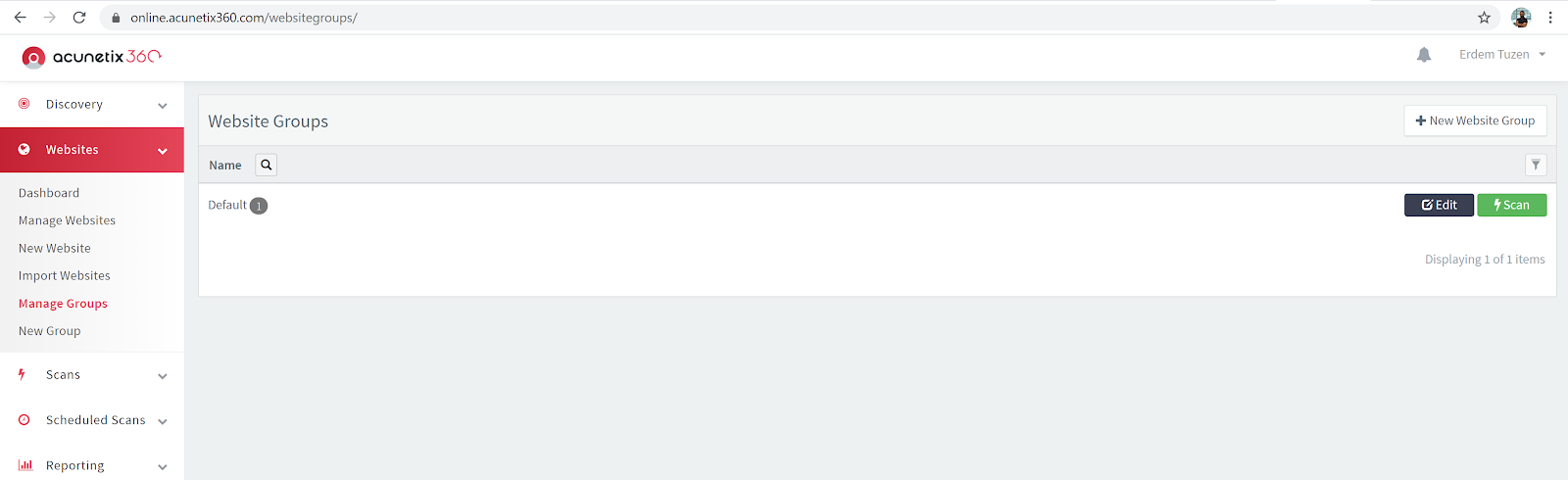

- In splunk, the Website Group and Website fields are optional. (These values can be found in the Website Groups window in Acunetix 360.)
- Click Update (or Add).
How To Search Vulnerabilities
Once the Add-on Settings and Input have been configured, Splunk starts to import data from the Acunetix 360 API.

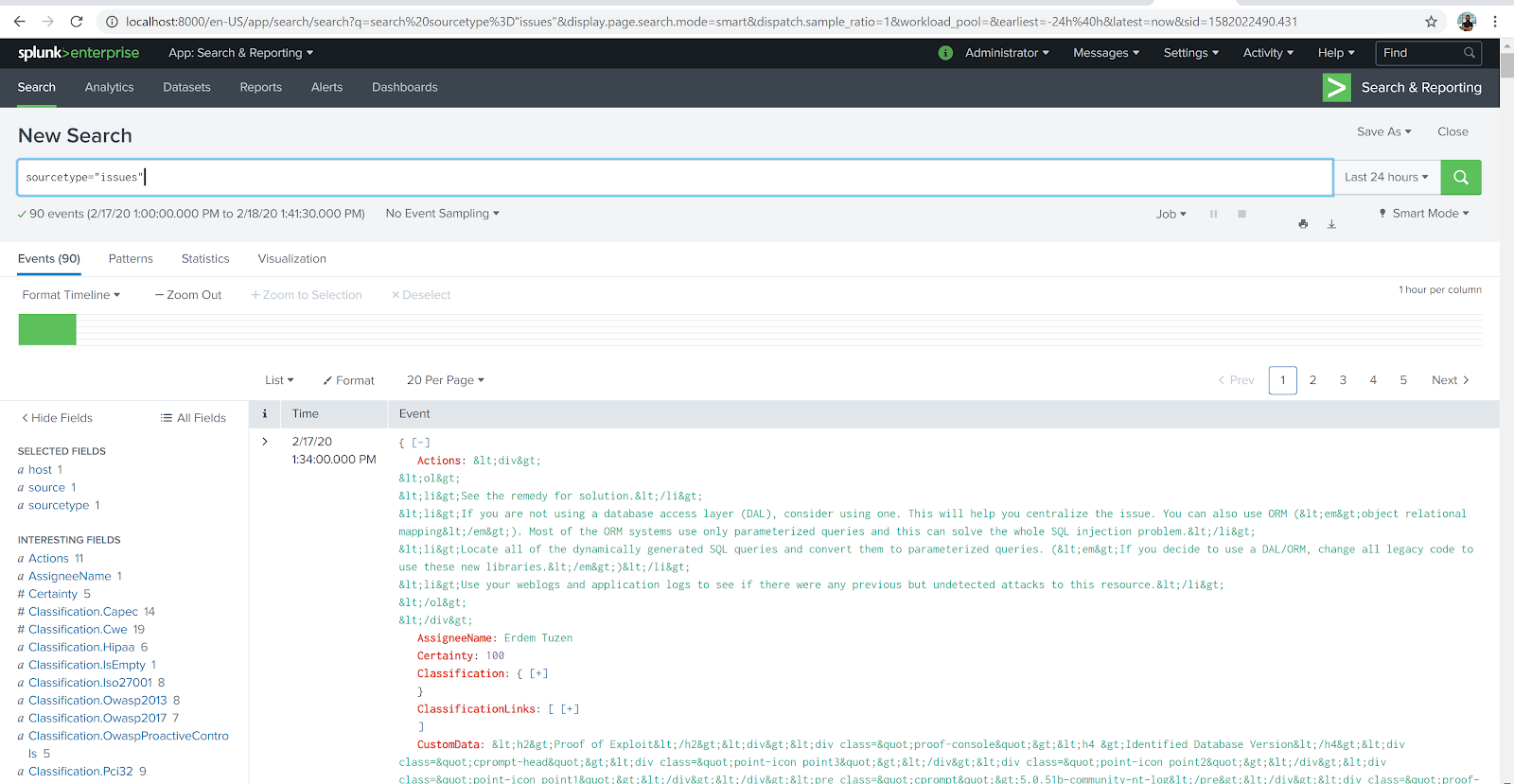

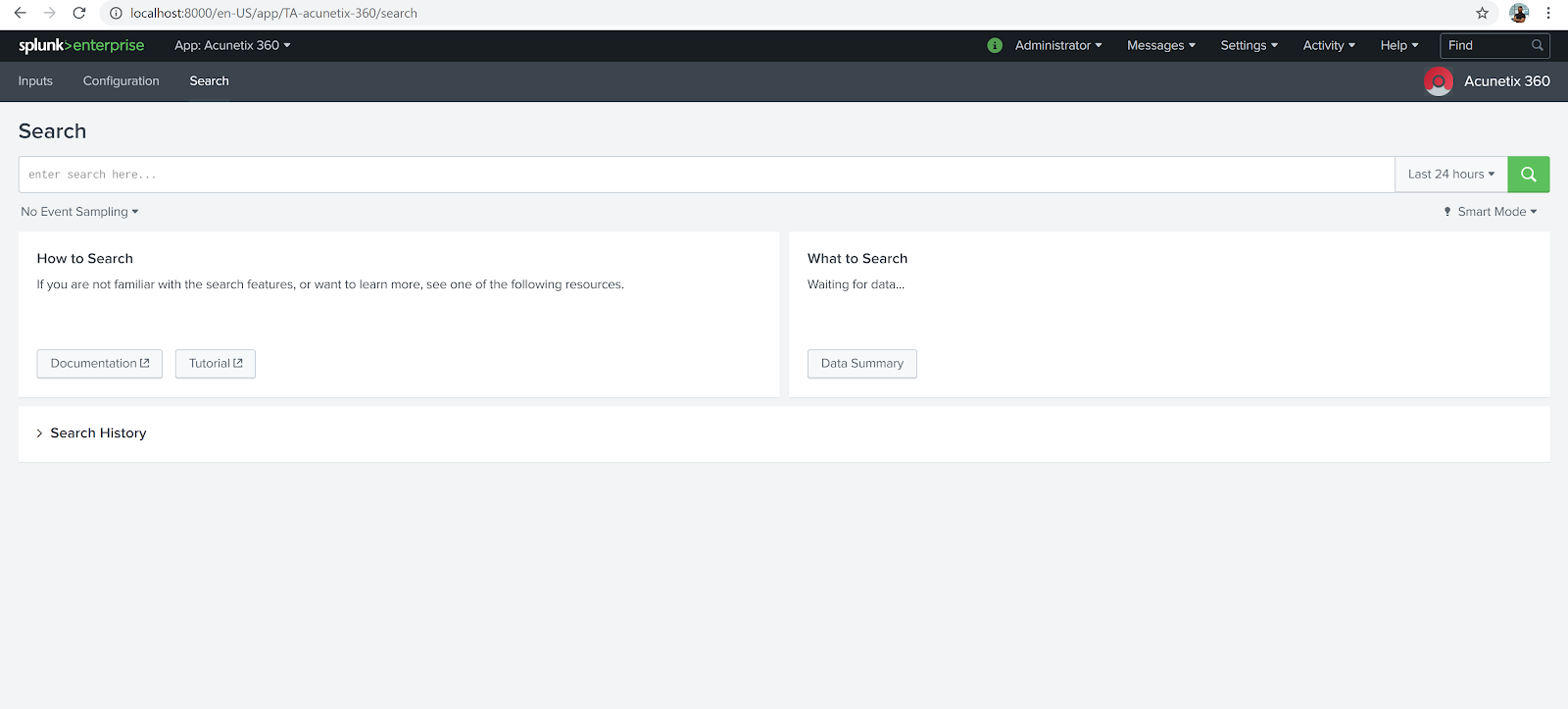

- In Splunk, navigate to the Acunetix 360 Add-on, then click the Search tab to view the imported data.

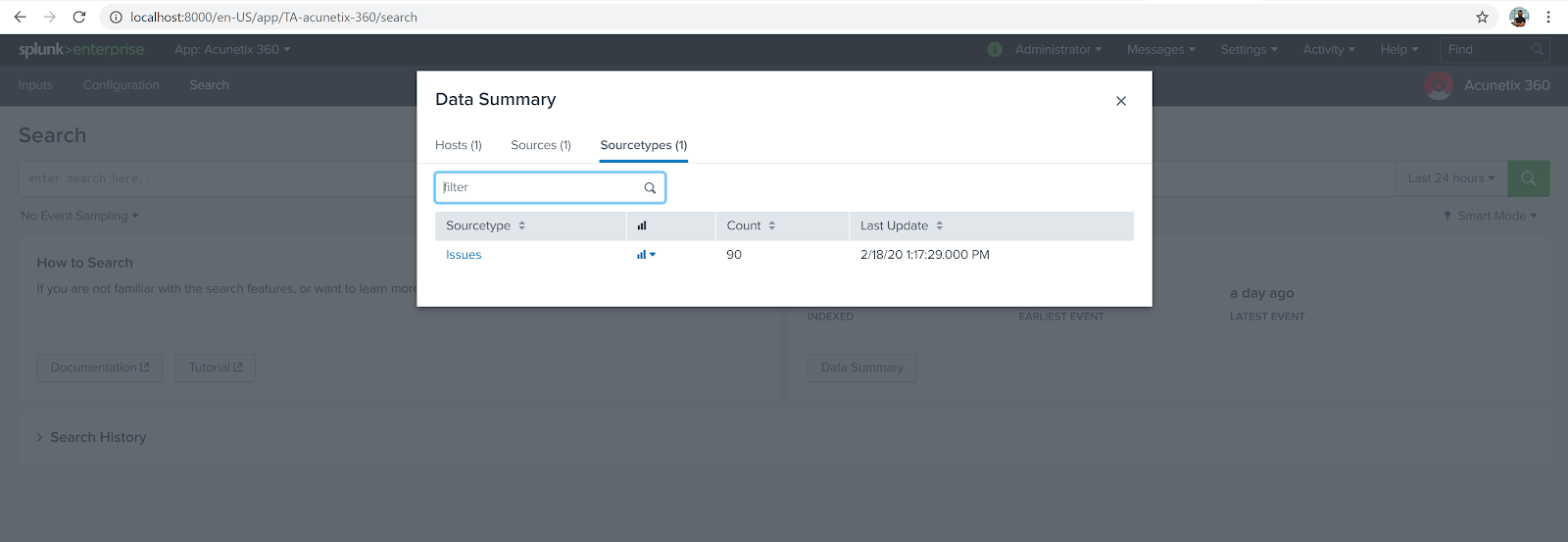

- Click Data Summary. The Data Summary dialog is displayed.
- Click the Hosts, Sources or SourceTypes tab to display issues.
