Agents in Acunetix 360 On-Premises

To scan a website located on your internal network, you need to install and configure a scan agent on your network. The agent will conduct the actual scan job and then report the results back to Acunetix 360.

You can install scan agents in Windows and Linux and use the dockerization version of the scan agent. These agents execute scans and inform the Invicti Enterprise application.
In addition to the scan agent, you can install an authentication verifier agent that will verify the form authentication on your website.

You can find agents' installer files in the Zip file you were emailed. OR, you can download them from the Acunetix 360 user interface.

This topic explains how to download scan and authentication verifier agents from the Acunetix 360 user interface and explains how to manage agents.

For further information on Agents, Installing and Configuring Acunetix 360 On-Premises.

Downloading agents

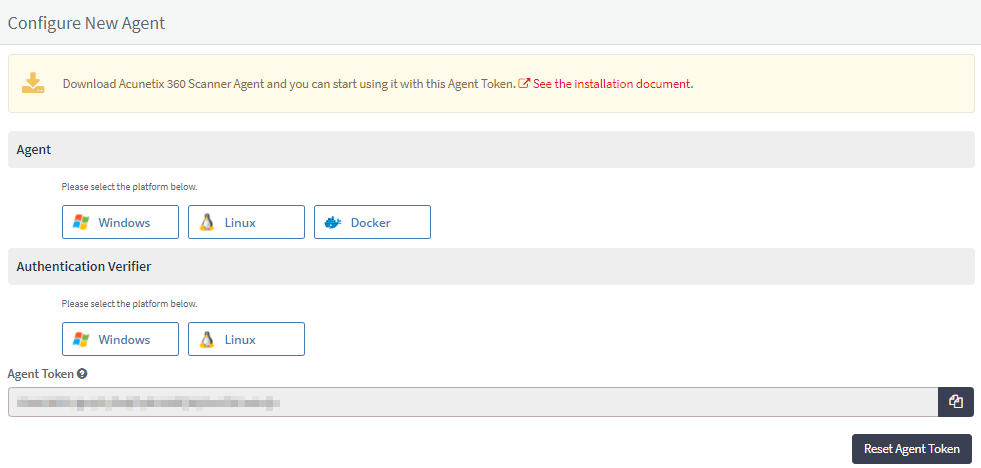

On the Configure New Agent page, you can download the agents you want to install.

How to download agents from Acunetix 360 user interface

Log in to Acunetix 360.
From the main menu, go to Agents > Manage Agents > Configure New Agents.

Select the agent you want to download. The download starts immediately.

Installing agents? See the following pages for further information:

Managing scanning agents

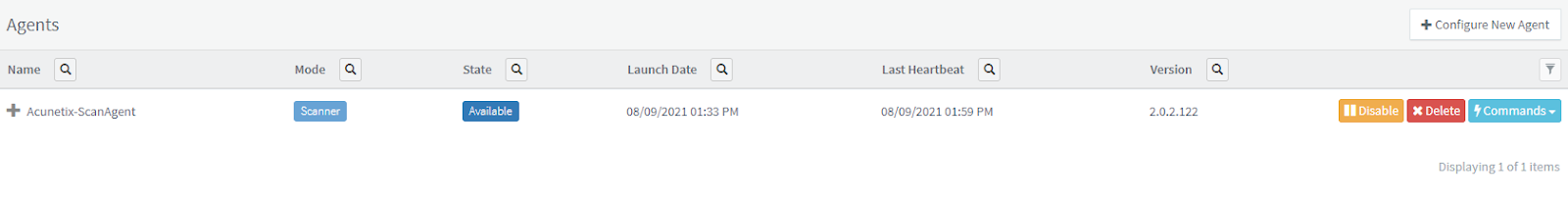

In the Manage Agents window, you can view the details and current state of all Agents. You can also disable them and add new Agents to the list.

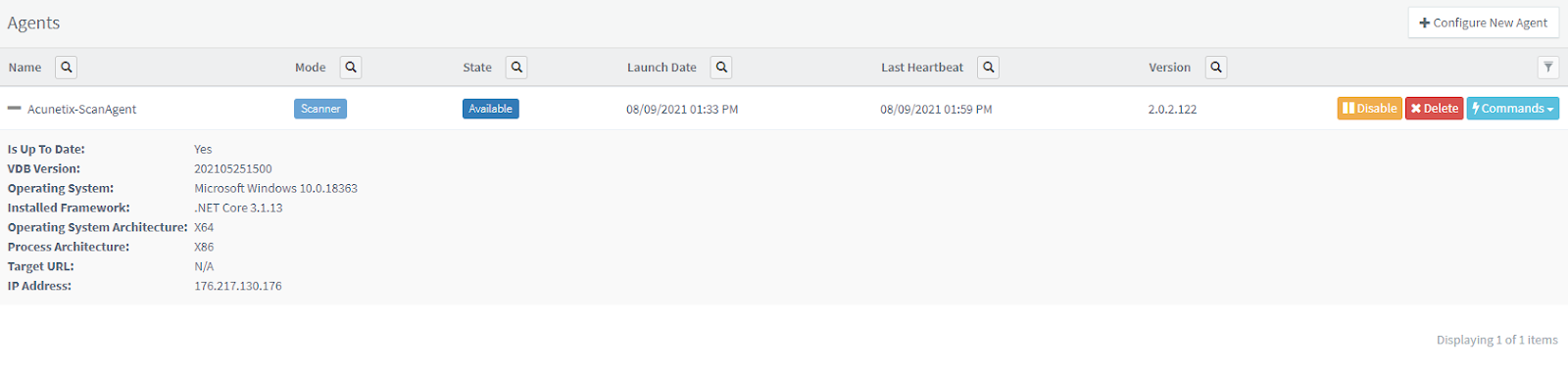

Manage Agents Fields

This table lists and explains the fields in the Agents window.

Field	Description
Name	This is the name of the agent.
State	This is whether the agent is online and waiting for a scan assignment. Available Launching Waiting Scanning Terminated NotAvailable
Launch Date	This is the date when the agent was first available.
Last Heartbeat	This is the last time the agent communicated with the web application.
Version	This is the version number of the scan agent.
Is Up To Date	This is whether the Agent is up-to-date.
VDB Version	This is the Vulnerability Database Version running on the Agent.
Operating System	This is the operating system on which the Agent is installed.
Installed Framework	This is the .NET environment on which the Agent is running.
Operating System Architecture	This represents the operating system architecture on which the Agent is installed.
Target URL	This is the target URL of the website, including the path.
Process Architecture	This represents the process architecture on which the Agent is installed.
IP Address	This is the IPv4 version of the Agent.

How to Configure an Agent for a Website

From the main menu, select Agents > Manage Agents.
On the Agents page, select Configure New Agent.
Copy the Agent Token to the appsetting.json file of the other Agent that you manually installed.

How to Disable an Agent

From the main menu, select Agents > Manage Agents.

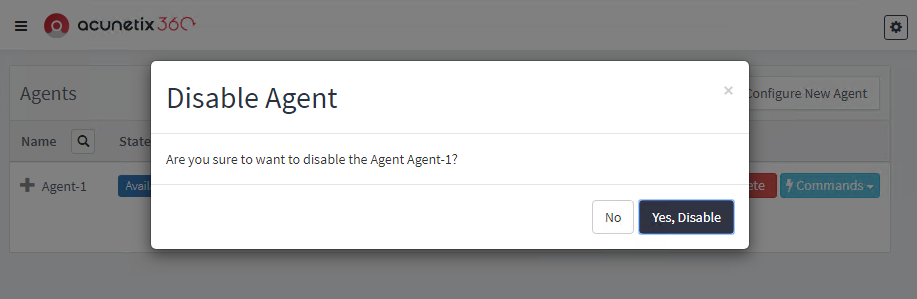

On the Agents page, select the Agent you want to disable, and select Disable in their field. The Disable Agent dialog is displayed.

Click Yes, Disable.

How to View Commands for an Agent

From the main menu, select Agents > Manage Agents.
On the Agents page, select the relevant agent.

From the Commands drop-down, select View Agent Commands.

Managing Groups

In the Manage Groups window, you can search for and view the names of the different agent groups. You can also edit or delete their details, and add a new agent group.

How to Add a New Agent Group

From the main menu, select Agents > Manage Groups

On the Agent Groups page, select New Agent Group.
On the New Agent Group page, complete the Name and Agents fields.
Select Save.

How to Edit Agent Groups

From the main menu, select Agents > Manage Groups.
On the Agent Groups page, select Edit on the field of the group you want to edit.
On the New Agent Group page, make your edits.
Select Save.

How to Delete Agent Groups

From the main menu, select Agents > Manage Groups.

On the Agent Groups page, select Delete. The Delete Agent dialog is displayed.
Click Yes, Delete.

Setting Proxy in Scanner Agents

You can set a proxy for the scanning agent in Acunetix 360. You are required to enter proxy settings manually to the appsettings.json file with your preferred text editor.

Acunetix 360 supports Basic Authentication but not Digest and NTLM.

"ProxySettings": {

"ProxyMode": "SystemProxy",

"UseDefaultCredentials": true,

"Username": "",

"Password": "",

"Domain": "",

"Address": "127.0.0.1",

"Port": "8888",

"ByPassOnLocal": false,

"ByPassList": []

This table lists and explains the entries in the Proxy settings.

Field	Description
Proxy Mode	Enter your proxy settings if you want the Agent to use or not to use the proxy. There are three modes: NoProxy: The Agent does not use a proxy even if you configure the server's proxy settings. SystemProxy: The Agent uses the System Proxy that was defined on the server. CustomProxy: The Agent uses Custom Proxy that you define in the appsettings.json file.
Use Default Credentials	Enter true if you authenticate to the proxy via the user that the Agent service is defined.
Username	Enter a username for authentication
Password	Enter a password for authentication
Domain	Enter a domain name
Address	Enter a proxy address. Only IP address or hostname without schema and port is allowed.
Port	Enter a port for the proxy
Bypass on Local	Enter a value that indicates whether to bypass the proxy server for local addresses.
Bypass List	Enter the address(es) that do not use the proxy server.

Warning

Any changes in the appsetting.json file, such as setting proxy and changing API Token, require restarting the service so that the changes can take effect.

Accessing Agent Logs

The Acunetix 360 Scanning Agent stores application logs in the Logs folder in the installation path.

With the latest version of the Agent, the last three days’ logs can be downloaded from the Manage Agents page. These logs are especially useful for troubleshooting.

How to Request Agent Logs

From the main menu, select Agents > Manage Agents.
Next to the relevant Agent, select the Command drop-down, then Request Agent Logs.

Once you confirm, the logs will be requested from the target agent and can be downloaded from the UI.

Alternatively, when target logs are ready, you will receive a notification. Click the bell, then select the relevant notification.

Select Download Logs. The download will start.

Managing Authentication Verifier Agents

On the Manage Verifiers page, you can view all verifier agents' details and their current state. You can also delete and disable them and add new agents to the list.

Manage Authentication Verifier Agents fields

This table lists and explains the fields on the Authentication Verifier Agents page.

Field	Description
Name	This is the name of the authentication verifier agent.
Launch Verification Date	This is the date when the authentication verifier agent was first available.
Last Heartbeat	This is the last time the authentication verifier agent communicated with the web application.
Auto Update Enabled	This is whether the Agent is configured to update itself when there is a new release.
Agent Version	This is the version number of the authentication verifier agent.
VdB Version	This is the Vulnerability Database Version running on the Authentication Verifier Agent.
Operating System	This is the operating system on which the Authentication Verifier Agent is installed.

Managing authentication verifier agents

This page lists authentication verifier agents installed on your machine.

From this page, you can download the required files to install your verifier agents, delete your agents, and request agent logs.

How to access the Manage Authentication Verifier page

Log in to Acunetix 360.
From the main menu, select Agents > Manage Verifiers.

Accessing verifier agent logs

The Acunetix 360 Authentication Verifier Agent stores the application logs in the Logs folder in the installation path.

The last three days’ logs can be downloaded from the Manage Authentication Verifier page. These logs are especially useful for troubleshooting.

How to access authentication verifier agent logs

From the main menu, select Agents > Manage Verifier.
Next to the relevant Agent, select the Command drop-down, then Request Agent Logs.
From the Request Verifier Logs dialog, select Yes. Wait.
In the Save As window, choose a location and select Save.

Then, Acunetix 360 downloads the log to your preferred location.

Deleting authentication verifier agent using the UI

You can delete an authentication verifier agent using Acunetix 360's user interface.

How to delete an authentication verifier agent using the UI

Log in to Acunetix 360.
From the main menu, select Agents > Manage Verifiers.
Next to the relevant agent, select Delete.
From the Delete Agent dialog, select Yes, Delete to delete the verifier agent.
